Product Name:
Bending Welded Mesh Fence
 |
Introduction For Bending Welded Mesh Fence
with ISO9001CE approved
1.Material: low carbon steel wire
2.Processing: weaving and welding, fixed by the linking accessories on the post.
3.Post available: round,square and peach shape.
4.Finish treatment: Electric glav.,hot-dipped galv.,PVC coated
5.Characteristics: high stength,good steel nature capacity,wonderful shape,
wide vision,easy to install, feel comfortable and bright.
6.Usage: fencing for road, railway, airport, residence district, seaport, garden, feeding and husbandry.
PVC coated Wire fencing detailed size:
|
Fence Height(cm) |
Panel Width |
Wire Diameter |
Mesh size(mm) |
Folds No. |
Post style |
Post size(mm) |
Post Length(cm) |
|
103 |
200cm
225cm
250cm |
3.5mm
4.0mm
4.5mm
5.0mm
6.0mm
8.0mm |
50x50
50x100
50x150
50x200
60x120 |
2 |
Square post 1 |
40x60x1.5 |
150 |
|
123 |
2 |
40x60x1.8 |
170 |
||||
|
150 |
2/3 |
40x60x2 |
197 |
||||
|
153 |
2/3 |
Square post 2 |
60x60x1.5 |
200 |
|||
|
170 |
3 |
60x60x1.8 |
217 |
||||
|
173 |
3 |
60x60x2 |
220 |
||||
|
180 |
3 |
60x60x2.5 |
227 |
||||
|
193 |
3 |
Peach post |
50x70 |
240 |
|||
|
200 |
3/4 |
70x100 |
250 |
||||
|
203 |
3/4 |
Holland post |
48x1.5 |
250 |
|||
|
240 |
4 |
290 |
|
Fencing Post specification |
|||
|
post type |
Post size |
Post thickness |
Post length |
|
Square post |
40x60mm or 60x60mm |
1.2-3mm |
1.5m-2.9m |
|
Peach shape post |
50x70mm or 70x100mm |
||
|
Round post |
38mm, 40mm, 50mm,70mm |
||

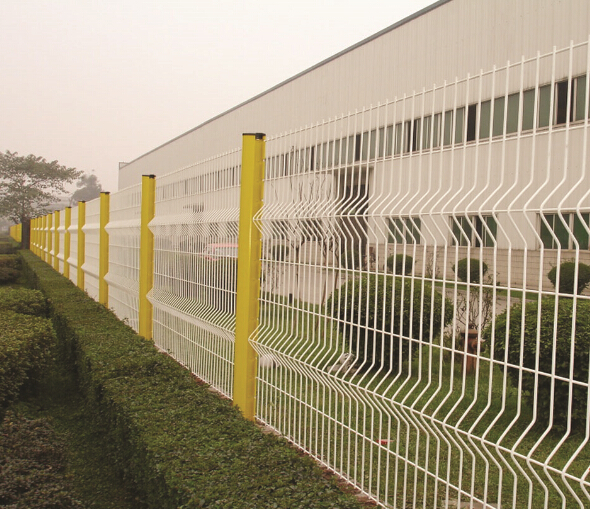

Project Photo For Bending Welded Mesh Fence
