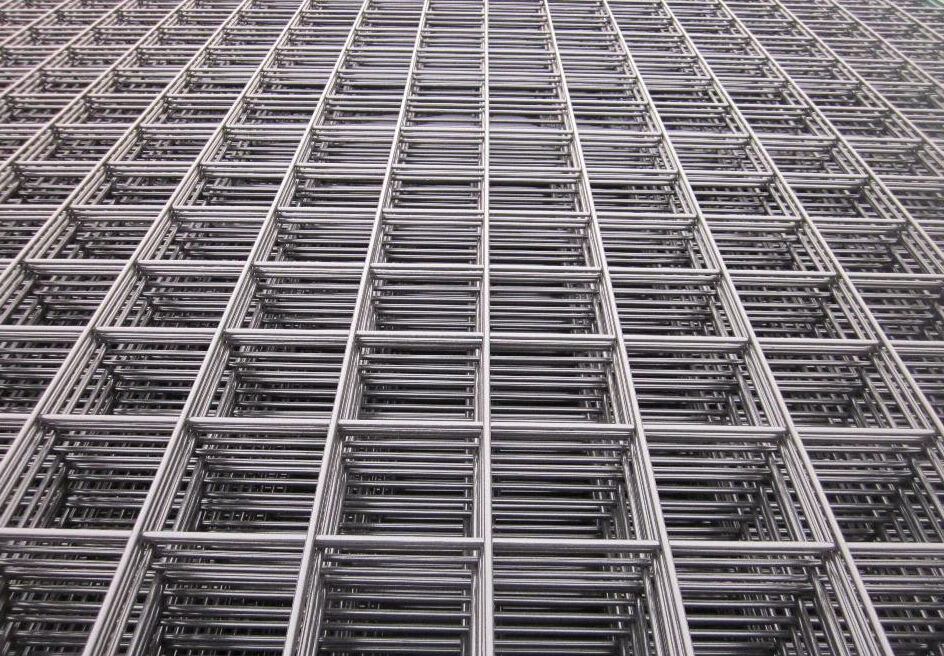

Welded Wire Mesh Panel
|
Product Name:
Welded Wire Mesh Panel
 |
Introduction For Welded Wire Mesh Panel
Welded wire mesh panels Materials:low carbon iron wire,stainless steel wire,galvanized iron wire
Wire diameter:1.5-6mm
Hole Size:1/2"x1/2"-4"x4"
Mesh length:1-8m
Mesh width:0.5-3m
Classifications:welded stainless steel wire mesh panels,galvanized welded mesh panels,hot dip zinc plating welded mesh panels
Feature:corrision resisting and oxidation resisting
Usage:used extensively in building,food,agriculture and so on.
Processing:Gal. before welded or gal. after welded

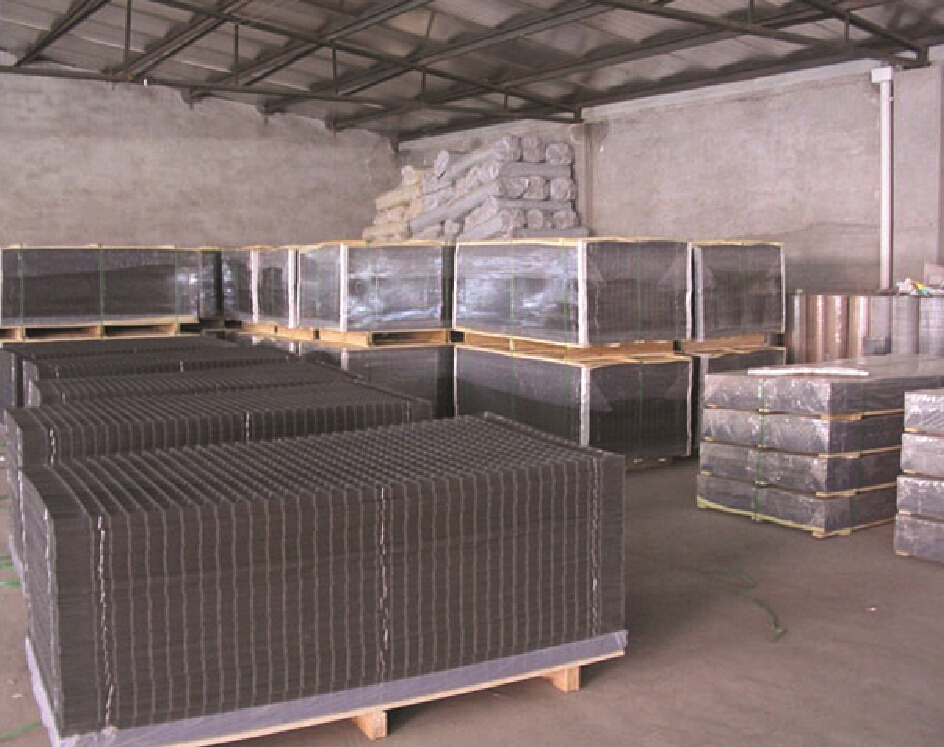

Packing:in pallets
Specifications For Welded Wire Mesh Panel
| Wire diameter(mm) | Mesh | |
| Inch | MM | |
| 1.5 | 1/2"x1/2" | 12.7mmx12.7mm |
| 1.75 | 2"x2" | 50.8mmx50.8mm |
| 1.9 | 2"x2" | 50.8mmx50.8mm |
| 2 | 1"x1" | 25.4mmx25.4mm |
| 2 | 2"x2" | 50.8mmx50.8mm |
| 2.5 | 1"x1" | 50.8mmx50.8mm |
| 3 | 1"x1" | 25.4mmx25.4mm |
| 3 | 1-1/4"x1-1/4" | 31.7mmx31.7mm |
| 3 | 2"x2" | 50.8mmx50.8mm |
| 3 | 3"x3" | 50.8mmx50.8mm |
| 4 | 4"x4" | 50.8mmx50.8mm |
| 4 | 2"x2" | 50.8mmx50.8mm |
| 4 | 1-1/2"x1-1/2" | 38mmx38mm |
| 6 | 4"x2" | 101.6mx50.8mm |
| 6 | 4"x4" | 101.6mmx101.6mm |
PVC coated welded wire mesh panels
---With green color
--with yellow color
Galvanized welded wire mesh panels
