Product Name:
Welded Wire Mesh
 |
Introduction For Welded Wire Mesh
Product Name:Welded Wire Mesh
Material:low carbon steel wire, stainless steel wire ,galvanized steel wire, PVC coated iron wire in blue ,green, yellow and other colours.
Features:smooth and trim mesh surface,solid and uniform structure and superior integral performance, it won’t loosen even subhect to local cutting or pressure,It has the characteristics of corrosion-resisting and oxidation-resisting.
Use:Welded Wire Mesh is extensively used in industry and agricultureconstruction,transportation and rack,fruit drying screen,fence,fruit drying screen,fence and other industries.
Packing:Moist proof paper,shrink bag, loose packing, special packing can be arranged upon request.
|
Specification List of Welded Wire Mesh |
||
|
Opening |
Wire Diameter<BWG> |
|
|
In inch |
In metric unit(mm) |
|
|
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
|
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
|
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
|
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
|
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
|
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
|
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
|
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
|
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
|
|
||

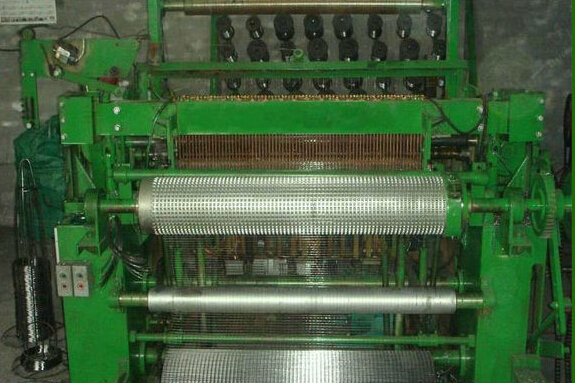

Production machine for Welded Wire Mesh

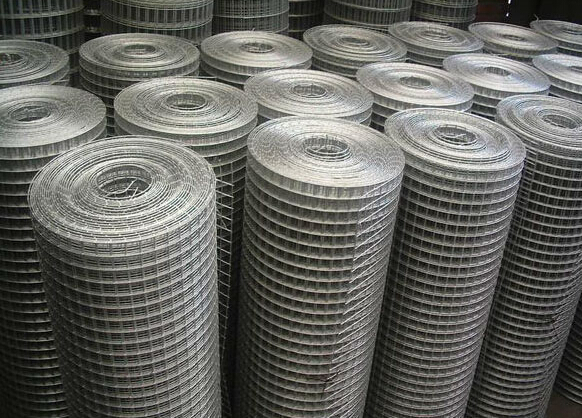

Galvanized Welded wire mesh

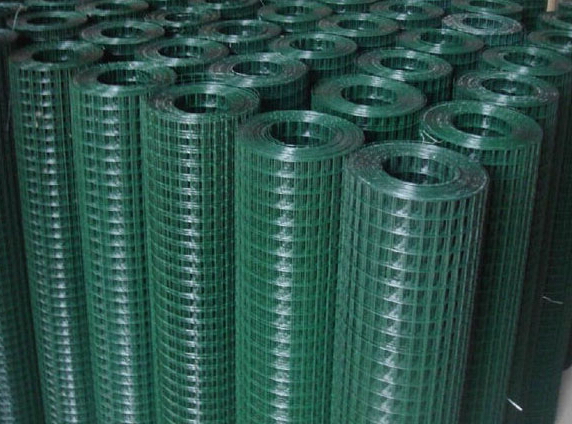

PVC Coated Welded Wire Mesh
